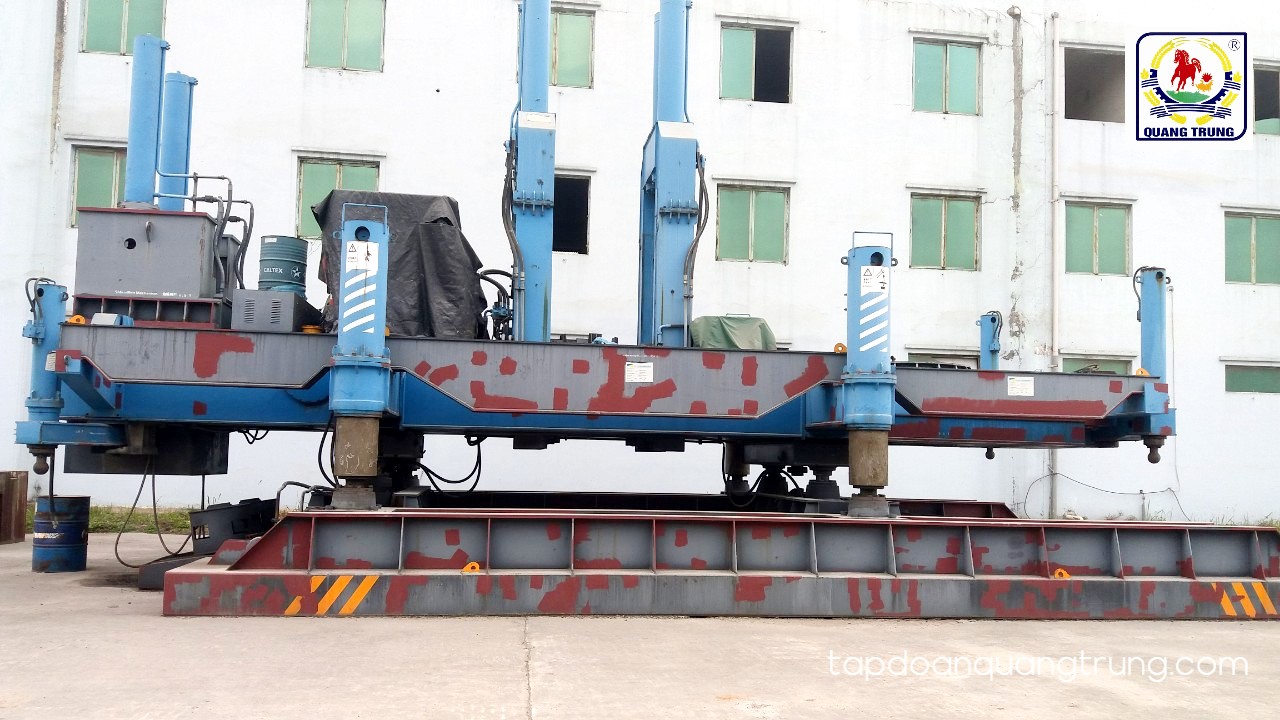

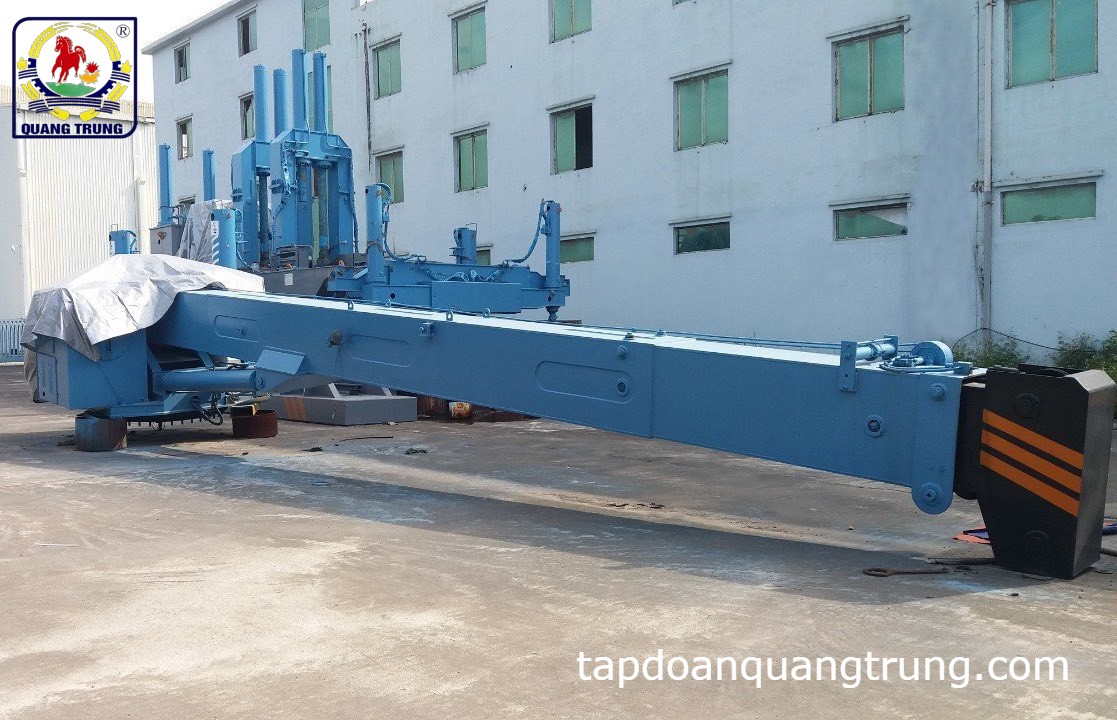

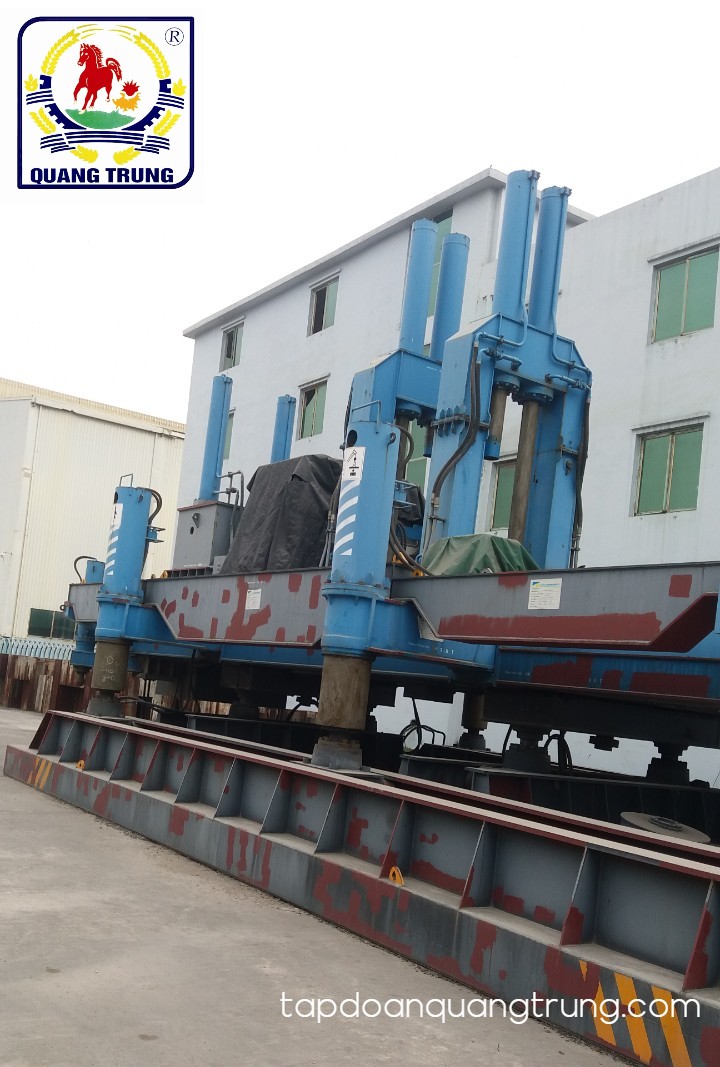

T-WORKS Hydraulic Press Robot with capacity of 500T - Model ZYC500B-BI

Today, along with the development of science and technology is the appearance of modern construction machinery and equipment, including the T-WORKS Hydraulic Pile Robot with a capacity of 500T - Model ZYC500B-BI. (Self-propelled robot).

When using T-WORKS Hydraulic Press Robot of 500T capacity - Model ZYC500B-BI, the pile is brought to the ground by static pressure through hydraulic system, so it does not cause noise and vibration to the works. vicinity. In addition, the hydraulic system is powered by a power source, so does not affect the environment.

* Advantages of T-WORKS 500T Hydraulic Press - Model ZYC500B-BI:

- The robot has a maximum pressing force of 600 tons and a maximum of D600 circular piles.

- Pressing piles with hydraulic robot has a fast and modern hydraulic system, which helps to ensure accurate pressing pressure, saving many calculations steps, improving productivity, making progress 2-3 times faster normal load, minimize risk, ...

- The introduction of pile driving robots helps reduce construction time, increase labor productivity, minimize incidents during pile construction, ...

- Modern design is friendly to the environment, runs smoothly and noiseless, is trusted by many countries around the world.

- Easy-to-use Cabin design for machine newbies.

* Specifications of T-WORKS 500T Hydraulic Press - Model ZYC500B-BI:

- Size: Minimum working size: L x W = 13m x 7.2m

- Long body:

Pressure on the ground: 135 KN / M2 Size: L = 12m W = 1.37m Span = 3.8m

- Short body:

Pressure on the ground: 135 KN / M2 Size: L = 4.6m W = 3.7m Rhythm = 0.7m

- Piling capacity: Gear I: 8.6m / min; Gear II: 3.3m / min; Gear III: 1.7m / min

- Capacity: Electric motor capacity: 3X37 + 30KW = 141KW; Hydraulic flow: 591.5L / minute; Max working hydraulic pressure: 25MPa

- Crane with lifting capacity: 25T * 14m pile

- Total weight: 500T

- Type of pile: Methods of hugging: Round pile with diameter ≤ 600 and square pile ≤ 550

- Color: Main body: Blue; Cabin: White

* Accompanying information of Hydraulic T-WORKS 500T Hydraulic Press - Model ZYC500B-BI:

- All goods and accessories are 100% new and manufactured in 2016, not yet used.

- Robot has included the entire mechanical structure and hydraulic system as well as other components and accessories for the entire operation process.

- Robot includes all CO, CQ certificates according to international standards.

Therefore, in order to meet the pile driving needs of a number of domestic enterprises, Quang Trung Industry Group Joint Stock Company we provide T-WORKS 500T Hydraulic Press Robot - Model ZYC500B-BI for quarters. Enterprises need to use this type of specialized Robot.
